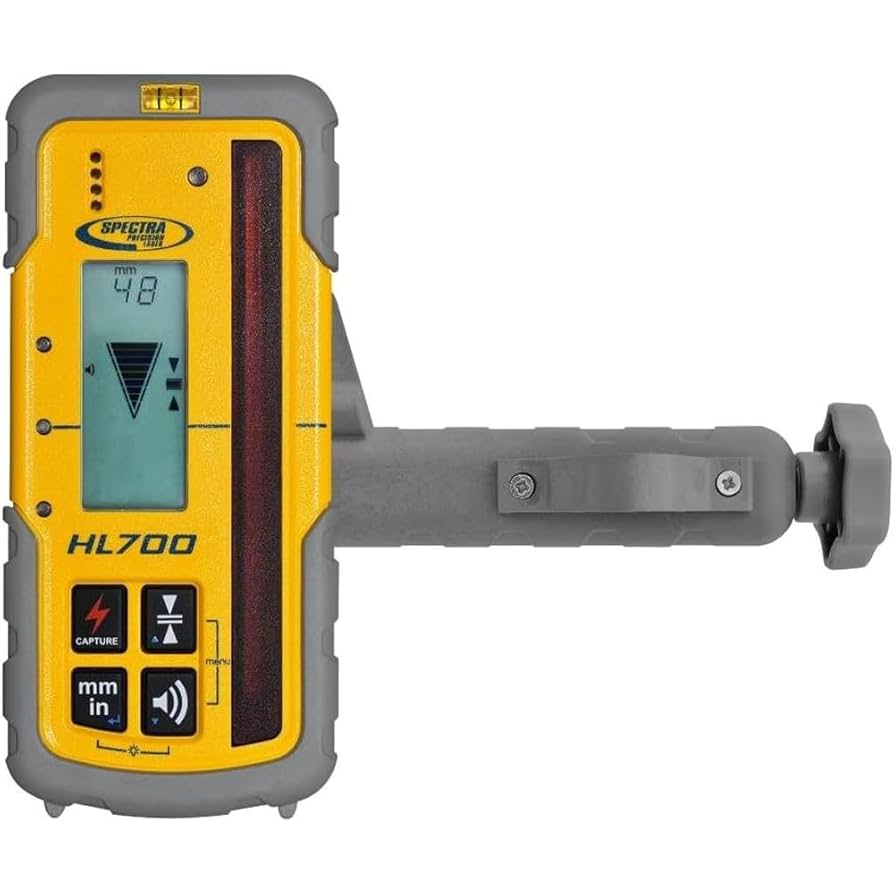

Buy Now: SPECTRA PRECISION HL700 Digital Laser Receiver

Home
Laser Level
Spectra Precision HLL 700 Laser Level

Spectra Precision HLL 700 Laser Level

Price:

$3,100.00

Brand:

Spectra

Condition:

New

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

BIG SALE SPECTRA PRECISION LASER INSTRUMENT FOR SURVEYING

Spectra Precision Laser GL512 Grade Laser and HL750 Laserometer with Radio

The Spectra Precision Laser GL512 single grade transmitters are rugged, cost-effective, automatic self-leveling lasers that do three jobs—level, grade, and vertical alignment.

The GL512 includes a 2-way, full-function remote control with a built-in back-lit grade display. You can do everything with the remote control that you can do at the laser keypad, up to 100 m away from the laser—even from the cab of a machine! The ability to make grade changes from anywhere on the job greatly reduces setup time and speeds operation. Verbal and visual communication errors are eliminated.

New wireless communication between the HL750 Laserometer and the transmitters provide automatic Grade Matching. Grade Matching allows measurement of unknown grade values between two points. PlaneLok is also available in both the horizontal and vertical planes. PlaneLok automatically locks the beam on the receiver and keeps it on grade. This eliminates all environmental factors that may induce an error.

Additionally, the HL750 Laserometer works with another HL750 for long range wireless remote display and monitoring.

Features

Automatic electronic self-leveling provides fast, easy horizontal level, grade, and vertical plumb setup
Large compensated grade range from -10% to +15%
Quick setups with the 2-way radio remote control, and single and dual grade application capability
Electronic Leveling Vibration Filter dampens vibrations typically experienced on tall tripods, in high winds, or on high vibration jobsites
No rework due to automatic temperature and grade compensation
Grade Match displays the existing grade over unknown ground and eliminates time consuming and error prone calculations, time spent searching for grade plans, and over excavating
PlaneLok automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather
Very rugged with low service costs; takes a 1 m drop on concrete
Mask mode eliminates interference with other crews on the jobsite

Applications

General construction leveling such as forms, footers and pads
Precision placement of concrete for critical specification surfaces over long distance and with laser controlled screeds (Automatic PlaneLok)
Drift free general construction vertical alignment and plumb for anchor bolt installation, plus form, tilt up and curtain wall plumbing (Automatic PlaneLok)
General construction grading and excavating
Steep slope road embankments and ditch banks
Sports fields, driveways, ramps and drainage

Includes: RC402 two-way radio remote control, HL750 receiver with general purpose clamp, NiMH rechargeable battery pack w/charger, and multi-language manual.
